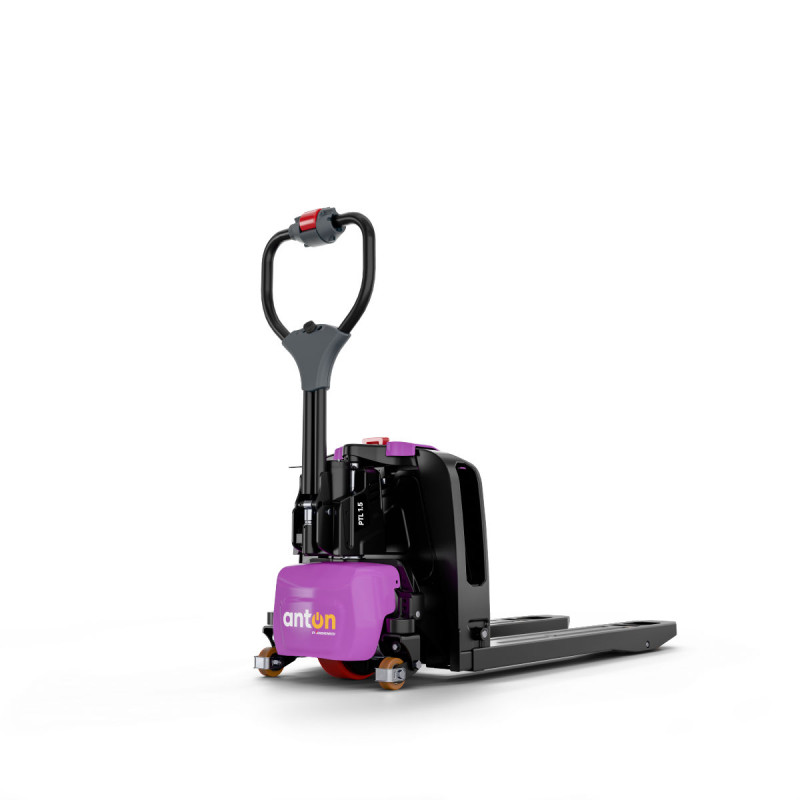

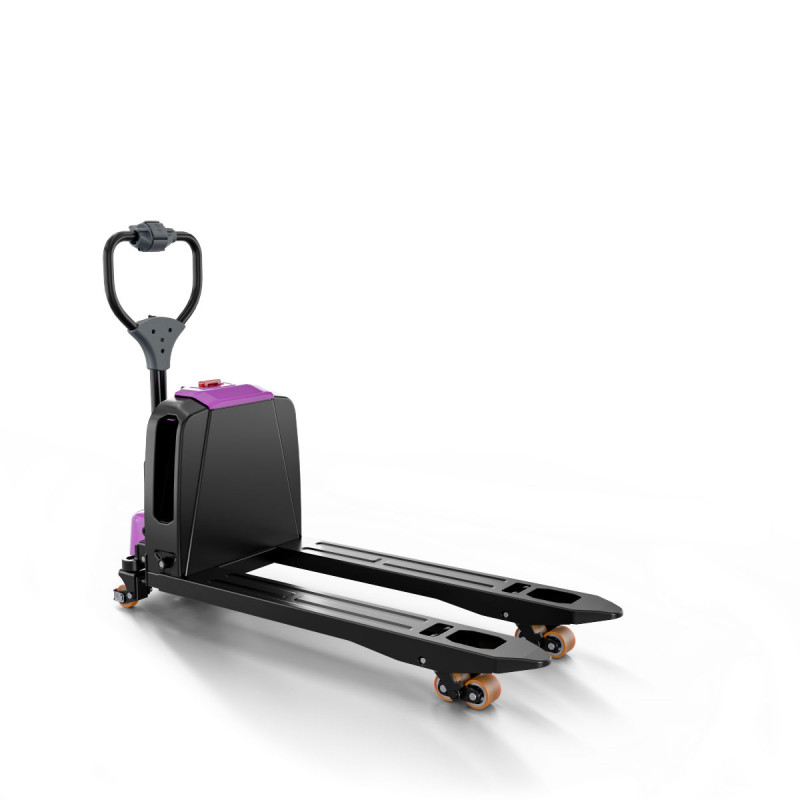

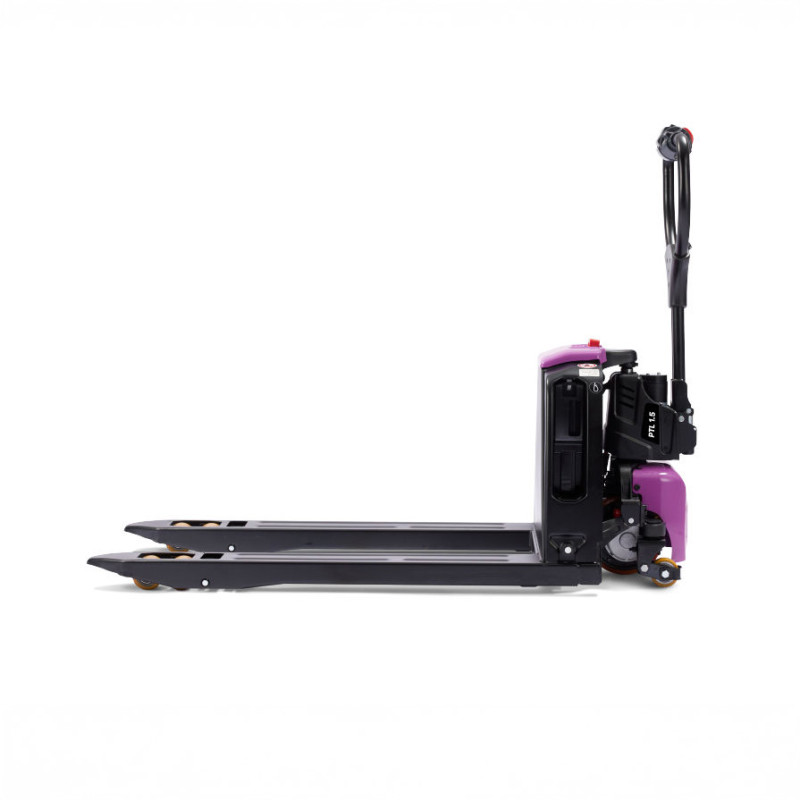

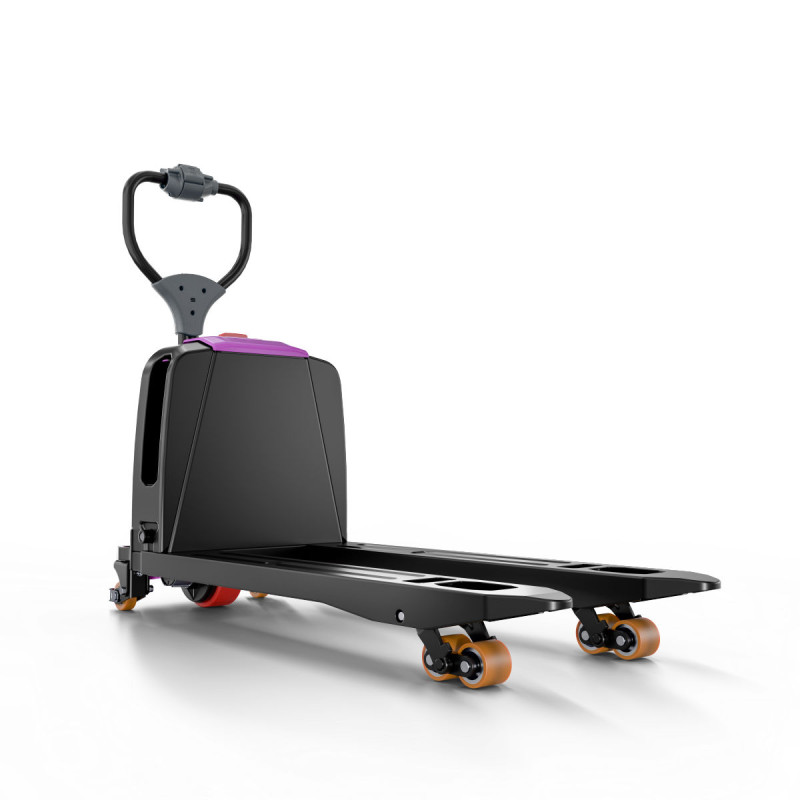

Electric pedestrian pallet truck - SW | PTL 1.5 | 685 x 1150 mm | AntOn by Jungheinrich

Description

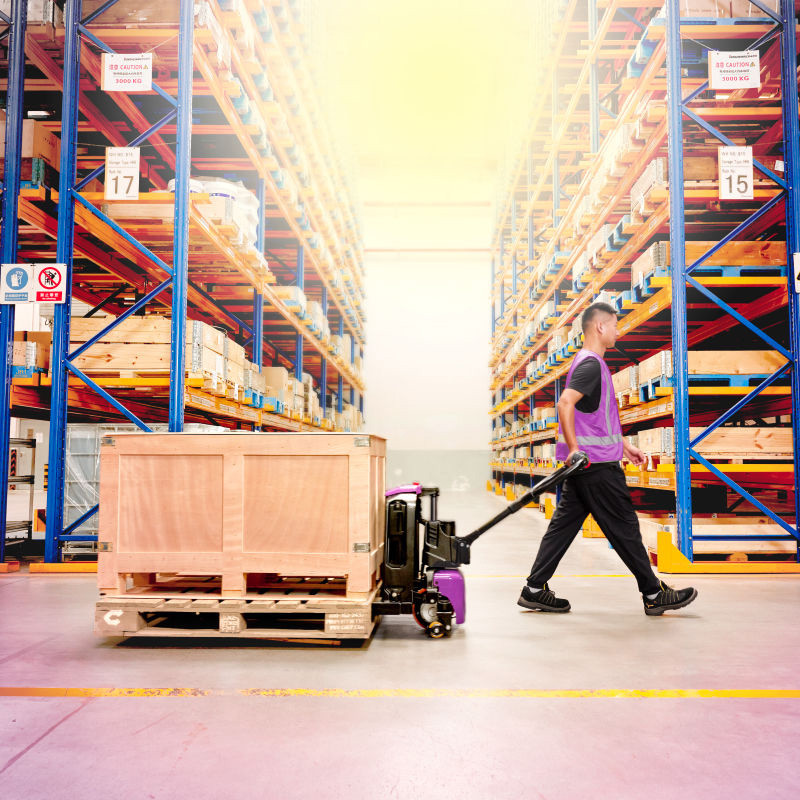

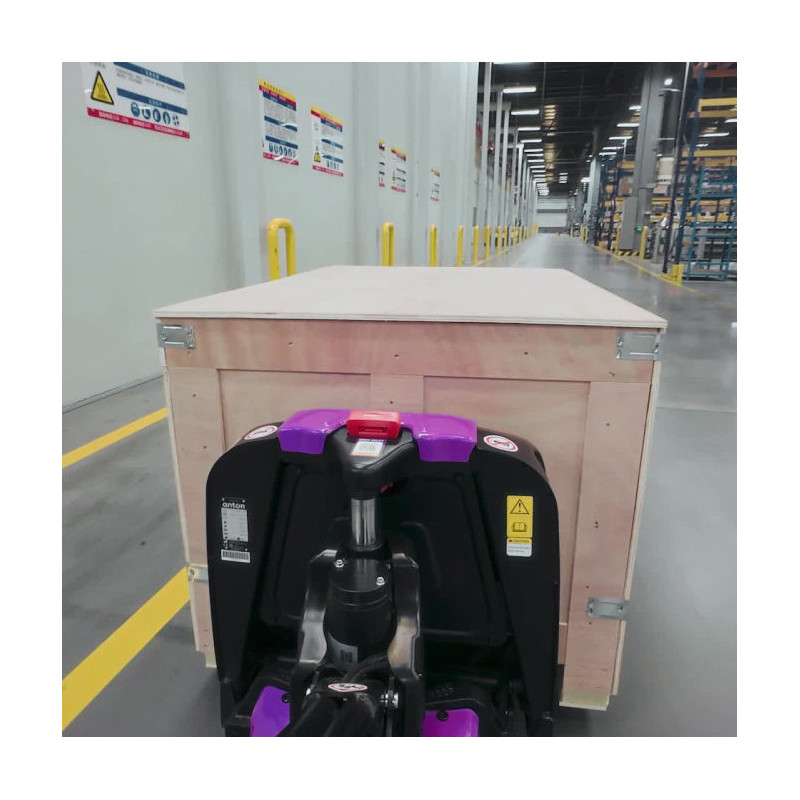

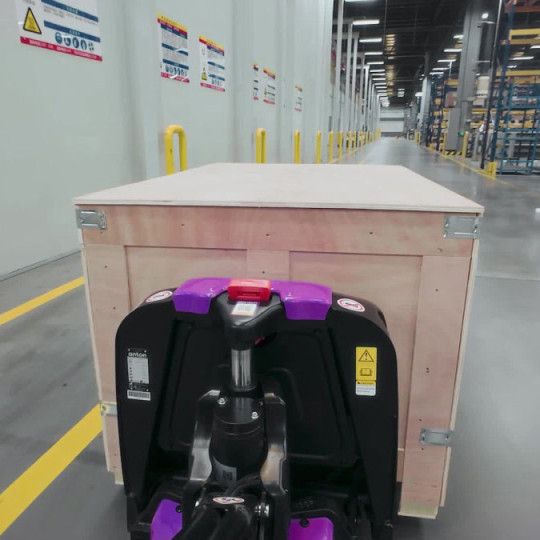

Ideal for use in warehouses, outdoors or on HGVs.

The AntOn by Jungheinrich PTL 1.5 is an entry-level model that has everything you need for your daily work – the electric pallet truck is compact and easy to operate. In the warehouse, at the shop or on the HGV: the PTL 1.5 adapts flexibly to a wide range of tasks – doing exactly what you expect of it.

Equipped with modern lithium-ion technology, well-thought-out functions and selectable fork lengths, it will swiftly become a reliable all-rounder. If you require longer operating times, the PTL 1.5 can be equipped with a second removable battery for additional power.

Designed for robust and reliable daily operation, it impresses with both its performance and its short delivery times. And all this at a price that makes it a smart choice for every situation – whether for newcomers or as an addition to your existing fleet.

Versatile One truck for every task – maximum flexibility.

The perfect addition for various transport jobs with different fork widths.
Equipment options for special requirements: stabilising wheels for more safety over uneven ground. Second battery socket for greater availability.

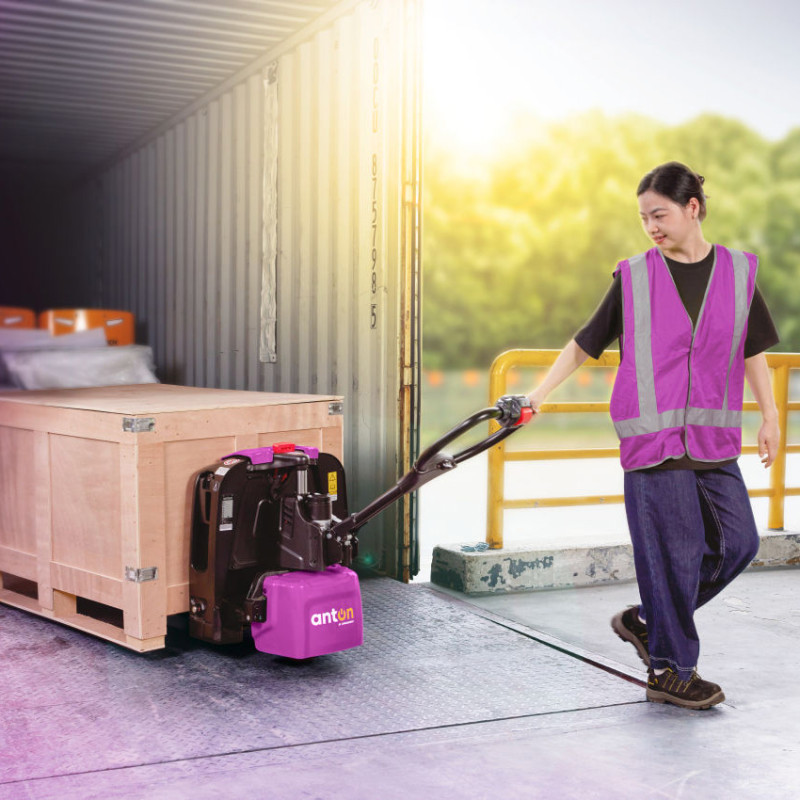

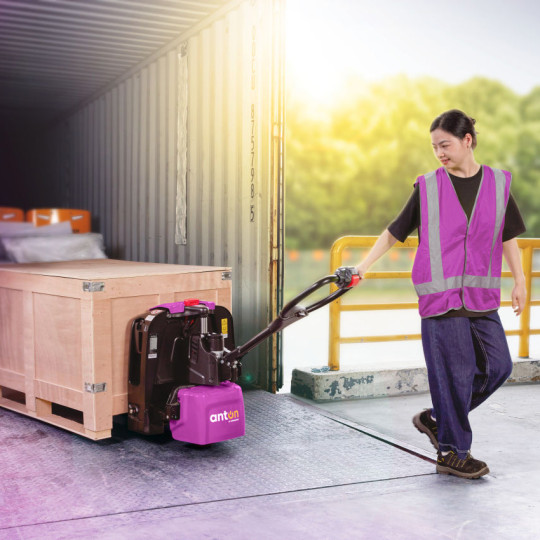

Compact design – ideal for use on HGVs and precise manoeuvring in confined spaces.

Straightforward Built for function and simplicity.

Easy to use and handle – suitable for all staff.
External charger for rapid booster charging.

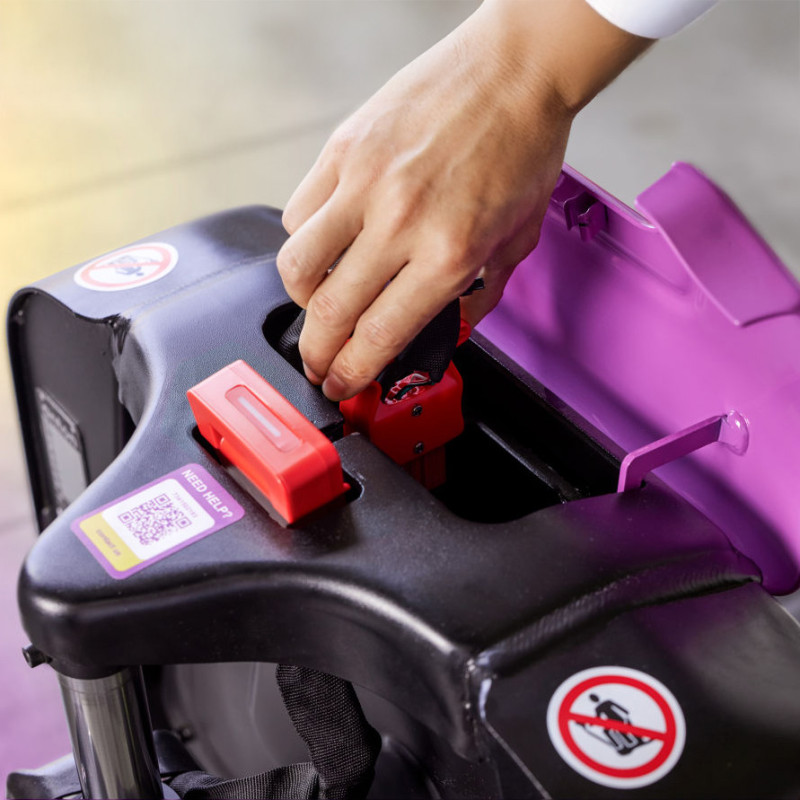

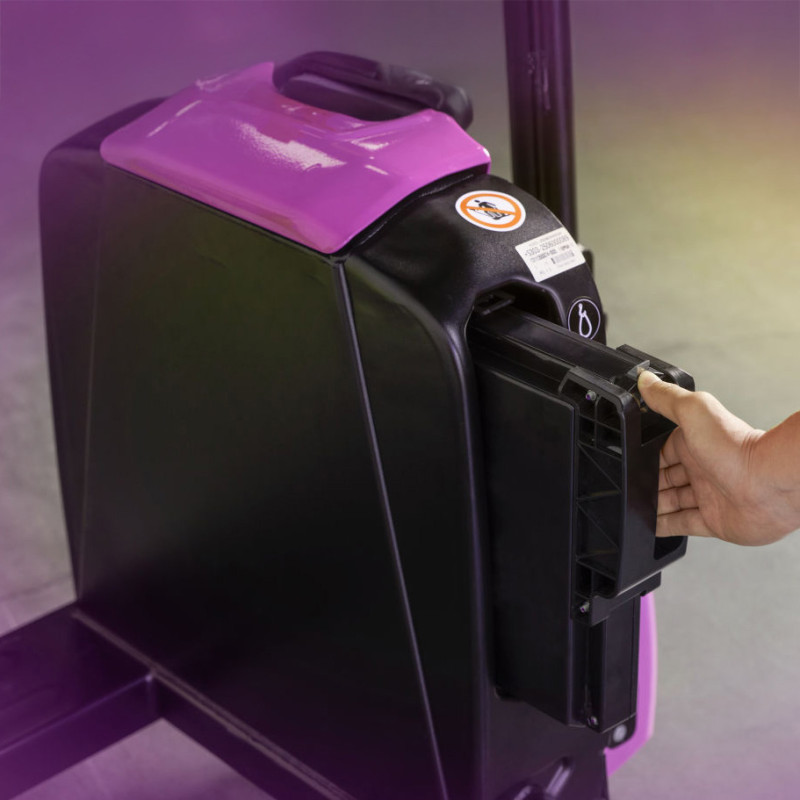

Effortless battery exchange thanks to practical plug-in system.
Simple self-service with video guides.

Cost-effective Strong performance at a smart price.

Cost-effective to buy and operate.
Enduring power with up to 2 x 24 V to 20 Ah removeable lithiumion batteries.
Reduces physical strain on the operator and improves workplace efficiency.
Robust and durable technology ensures reliable operation.
One truck. Many applications.

For technical support, please visit the AntOn by Jungheinrich Service & Support page: www.jungheinrich.co.za/anton-service.

Product Details

Drive: Electric
Overall width: 695 mm
Turning radius: 1360 mm
Lowering speed, laden / unladen: 0.06 / 0.04 m/s
Max gradeability, laden / unladen: 6 / 16%
Battery voltage/ nominal capacity: 24 V/per unit
Type of drive control: Impulse/DC
Length to face of forks: 400 mm
Fork length: 1150 mm
Fork roller material: Polyurethane (PU)

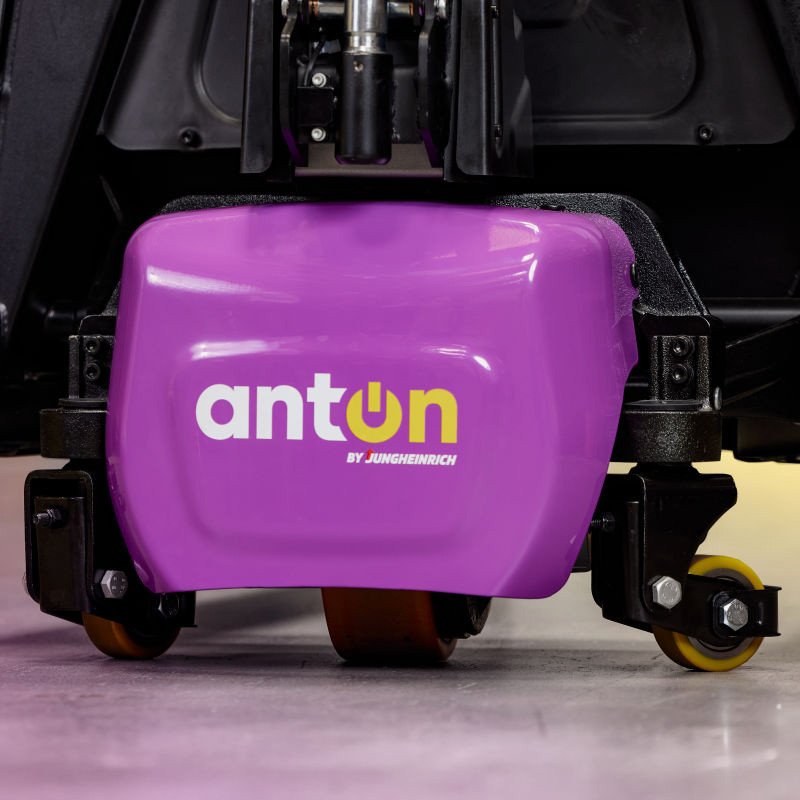

Steering wheel material: Polyurethane (PU)
Load centre: 600 mm
Steering wheel diameter: 210 mm
Steering wheel width: 70 mm
Fork height: 82 mm
Tiller height: 645 / 1145 mm
Fork roller diameter: 80 mm
Net weight: 120 kg
Fork roller width: 61 mm
Battery weight: 5 kg
Fork width: 685 mm
Travel speed, laden / unladen: 4.5 / 4 km/h
Battery capacity: 20 Ah/per unit
Operator Type: Pedestrian
Ground clearance: 27 mm
Noise level as per EN 12053 (operator's ear): 74 dB(A)
Brake: Electromagnetic
Drive motor power: 0.75 kW
Fork roller equipment: Tandem

Attachments

PTL 1.5 spec sheet (850.62KB)

AntOn by Jungheinrich Electric pedestrian pallet truck PTL 1.5, 685x1,150 mm - SW

Name: AntOn by Jungheinrich Electric pedestrian pallet truck PTL 1.5, 685x1,150 mm - SW
Brand: AntOn by Jungheinrich
SKU: 52539980
Price: 24900 ZAR
Availability: InStock
